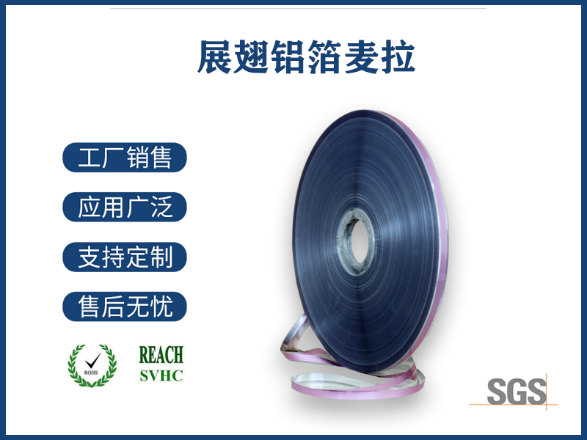

產品簡介：[產品說明]: 展翅鋁箔麥拉又叫蝶翼鋁箔麥拉,是將已分條的鋁箔麥拉帶與較寬的麥拉膜再做第二次精密復合。 Product Description: Free edge aluminum polyester tape also called butterfly wings aluminum polyester tape, which slit aluminum Mylar with wide Mylar film to do a second precise compound.[應用方式]: 主要
[產品說明]: 展翅鋁箔麥拉又叫蝶翼鋁箔麥拉,是將已分條的鋁箔麥拉帶與較寬的麥拉膜再做第二次精密復合。
Product Description: Free edge aluminum polyester tape also called butterfly wings aluminum polyester tape, which slit aluminum Mylar with wide Mylar film to do a second precise compound.
[應用方式]: 主要用于需要外披覆絕緣的干擾屏蔽，側邊延伸的薄膜提供可靠的絕緣密閉效果。應用于對絞線，復合線，等多導體線材的干擾遮蔽，如控制線材，計算機用線及信號傳輸線材等，是DVI、HDMI、DP、RGB等高頻線材的必需材料。
Application: Mainly used for interference and shielding which need out drape insulation, the film of side extend provides reliable insulate effect. Apply to twisted pair wire, composite wire and interference shielding with multi-conductive wire, such as control wire, computer wire and signal wire etc. It is essential material of DVI、HDMI、DP、RGB high frequency wire.
一、主要技術指標：
Main specifications:
產品規格 Specification | 寬度 Width(mm) | 組成Composition | 伸長率 Elongation （%） | 抗張強度 Tensile strength （kgf/m2） | 基重 Basis weight （g/m2） | 電阻 Resistance (Ωμ.mm) | ||
| 鋁厚AL | 麥拉厚PET | 麥拉厚PET | ||||||
| 37μm | 6+9 | 7μm | 12μm | 12μm | 35↑ | 0.37↑ | 62.70 | 3800↓ |
| 40μm | 8+11 | 7μm | 12μm | 15μm | 35↑ | 0.38↑ | 63.45 | 5000↓ |
| 39μm | 8+11 | 9μm | 12μm | 12μm | 35↑ | 0.40↑ | 79.65 | 3800↓ |
| 42μm | 10+14 | 9μm | 12μm | 15μm | 35↑ | 0.40↑ | 70.45 | 5000↓ |
除以上規格外，其它可按客戶特殊要求單獨設計。 In addition to the above specifications, other special requirements can design according to customers | ||||||||
二、顏色：常見顏色為藍色和銀色,還可根據需要做成紅色、綠色、金色等。
Color: Common color is blue and silver, can also be made red, green, gold, etc, according to customer’s needs.
三、應用：主要應用于高頻通信、電子等電線電纜之EMI屏蔽包材用。在DVI、HDMI、DP等高頻線纜中，在為版本和工藝的特殊要求，展翅鋁箔麥拉帶被協會制定使用。其相等于對于同時繞包普通鋁箔麥拉和聚酯麥拉帶，不僅大副送減少了操作工序，可以一次繞包成型，而且降低了20%的不良率。
Application: Mainly used in EMI shielding and wrapping with high frequency cable and electronics, in high frequency cable, like DVI、HDMI、DP etc. for the special requirement with version and technique, free edge aluminum polyester tape was set down and use by association. Compare to common aluminum Mylar and Mylar tape, not only reduce the operate procedures, wrapping form can finish at one time, and reduce non-performing rate of 20%.
四、電氣特性：主要作為抗電磁干擾用，通常情況是在1-100MHZ，屏蔽衰減70dB左右時，用展翅鋁箔麥拉就可以達到。
Electrical characteristics: mainly use as anti-electromagnetic interference, usually in 1-100MHZ, shielding attenuation around 70dB; it can be achieved with free edge aluminum polyester tape.
五、分切及包裝：分切最小寬度為6+8mm，內孔大小為52mm或76mm；收卷最大外徑為800mm，紙箱包裝。
Slitting and packaging: Slitting minimum width of 6+8mm, bore size of 52mm or 76mm; the winding maximum outer diameter of 800mm, carton packaging.
