所屬分類： 阻燃繞包材料

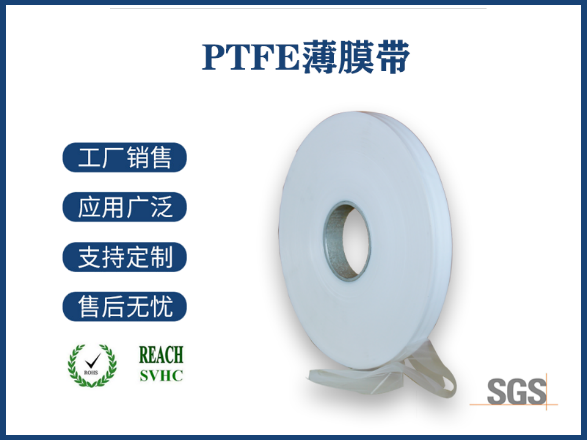

產品簡介：[產品說明]: F4四氟薄膜帶,又叫純特氟龍膠帶，特氟龍薄膜膠帶，純鐵氟龍粘膠帶，聚四氟乙烯薄膜膠帶，PTFE薄膜帶，PTFE薄膜膠帶。是一種低密度、標準級、可燒結的多微孔薄膜帶。Product Description: F4 PTFE tape, also called pure Teflon tape, Teflon film tape, PTFE film tape. It is a micro porous film tape
[產品說明]: F4四氟薄膜帶,又叫純特氟龍膠帶，特氟龍薄膜膠帶，純鐵氟龍粘膠帶，聚四氟乙烯薄膜膠帶，PTFE薄膜帶，PTFE薄膜膠帶。是一種低密度、標準級、可燒結的多微孔薄膜帶。
Product Description: F4 PTFE tape, also called pure Teflon tape, Teflon film tape, PTFE film tape. It is a micro porous film tape with low density, standard grade and sintered.
[應用方式]: 主要用于航空、航天、軍工、雷達、電子通訊等領域的RF電纜、微波通信電纜、航空導線等的繞包絕緣層。
Application: Mainly used in RF cables, microwave communications cables, aerial wire wrapping and insulation layer in aviation, aerospace, military, radar, electronic communications and other areas.
主要技術指標：
Main specification:
| 產品規格Specification (μm) | 常用密度Density（g/cm2） | 抗張強度Tensile strength（Mpa） | 伸長率Elongation（%） |
| 35±5 | 0.0084 | 5.52↑ | 15↑ |
| 50±5 | 0.0119 | 5.52↑ | 15↑ |
| 100±5 | 0.0239 | 7.65↑ | 15↑ |
| 150±5 | 0.0358 | 9.78↑ | 15↑ |
| 200±5 | 0.0477 | 11.72↑ | 15↑ |
| 除以上規格外，其它可按客戶特殊要求單獨設計。In addition to the above specifications, other special requirements can design according to customers | |||
二、顏色：白色或其它顏色。
Color: White or other color
三、電氣特性：耐高低溫，耐腐蝕性，低摩擦，耐磨損性，抗?jié)裥裕呓^緣。PTFE薄膜帶經拉伸產生微孔，用它做導線絕緣層耐溫等級高，柔軟性好，屏蔽性能好，通訊頻率高衰減低，熱膨脹系數小。
Electrical characteristics: High and low temperature resistance, corrosion resistance, low friction, wears resistance, moisture resistance, high insulation. PTFE film tape produce micro porous by stretching, temperature resistance rating is high if use it as conductive wire insulation layer, good softness, good shielding property, low attenuation, high frequency communications, low coefficient of-thermal expansion.
四、分切及包裝：分切最小寬度為5mm，內孔大小為52mm或76mm；收卷最大外徑為800mm，紙箱包裝。
Slitting and packaging: Slitting minimum width of 5mm, bore size of 52mm or 76mm; the winding maximum outer diameter of 800mm, carton packaging.
